VO-16020 30L/0.9CF CE/ISO Vacuum Oven

  • 1 - 19 Sets
    $490.00
  • 20 - 49 Sets
    $450.00
  • >=50 Sets
    $410.00
Model Number:
VO-16020
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 14 Negotiable
Customization:
Customized logo (Min. Order: 50 Sets)
Customized packaging (Min. Order: 50 Sets)

More

Graphic customization (Min. Order: 50 Sets) Less
Samples - $490.00 /Sets, 1 Sets (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant
Application:
Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing, Aging Processing
Condition:
New
Type:
Vacuum Drying Equipment
Place of Origin:
Shanghai, China
Brand Name:
Shanghai Huitai Insturment
Voltage:
110V/220V
Power(W):
600W/700W
Dimension(L*W*H):
615mmX515mmX530mm
Weight:
57kg
Certification:
ISO/CE
Warranty:
1 Year
After-sales Service Provided:
Online support, Video technical support
Key Selling Points:
High-accuracy
Temp. Range(turn off LED lights):
RT+10~200°C/RT+50~400°F
Temp. Range(turn on LED lights):
RT+10~150°C/RT+50~300°F
Temp. Fluctuation:
±1°C/±1°F
Temp. Resolution:
0.1°C/0.1°F
Vacuum degree:
≤133Pa/0.039inHg
Timing:
1~9999min
Chamber Dimension:
320mmX320mmX330mm
Oven Dimension:
615mmX515mmX530mm
Shipping Dimension:
715mmX610mmX700mm
Volume:
30L/0.9CF
Supply Ability
Supply Ability:
5000 Set/Sets per Year
Packaging & Delivery
Packaging Details
Plywood Box
Port
Shanghai, China
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 14 To be negotiated
Product Description

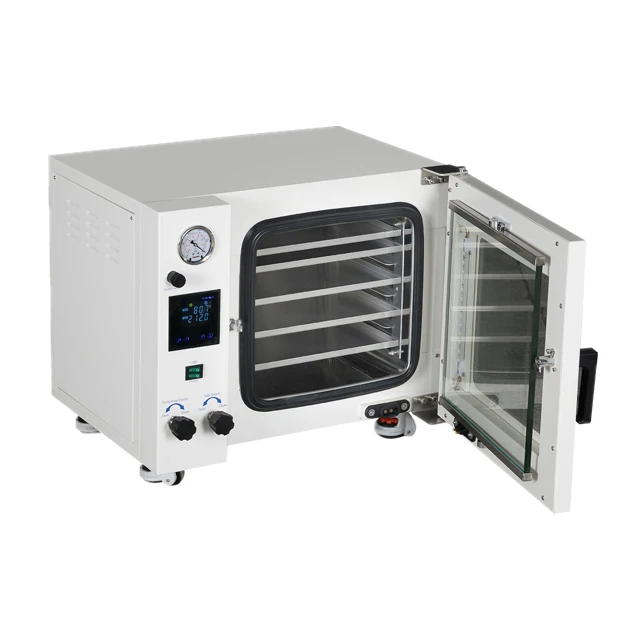

VO-16020 Vacuum Oven (Five-Sides Heating&LED Lights)

    The VO-16020 vacuum oven is widely used for powder drying, baking, disinfection and sterilization of various glass containers. It is especially suitable for fast and efficient drying of heat sensitive, easily decomposable, oxidizable substances and complex ingredients.

Detailed Images
Features

Temperature Controller

The PID temperature touch button controller with timing uses a large LCD screen to display the measure temperature and set temperature.

Chamber

The chamber is made of 304 stainless steel plate.

Five-sides heating, the heating element is located on the outer and rear walls of the chamber.

Vacuum Gauge

Oil-filled mechanical pressure gauge is for more accurate vacuum readings.

LED Light

Built-in advanced white LED lights are easy to observe samples.

Inert Gas Inlet Hole & KF25 Interface

Standard with inert inlet and KF25 interface.

If the experimental sample requires inert environment, it can be filled with nitrogen gas or other inert gas.

Vacuum Valve & Exhaust Valve

Stainless steel internal vacuum tube, stainless steel vacuum valve and exhaust valve which can maintain excellent vacuum.

Specifications
Model
VO-16020
Temperature Range
RT+10~150°C (turn on LED lights) or RT+10~200°C (turn off LED lights)
RT+50~300°F (turn on LED lights) or RT+50~400°F (turn off LED lights)

Temperature Fluctuation
±1°C/±1°F
Temperature Resolution
0.1°C/0.1°F
Vacuum
≤133Pa/0.039inHg
Timing
1~9999min
Power Requirement
AC110V 60HZ/ AC220V 50HZ
Power Consumption
600W(110V)/700W(220V)
Chamber Dimension
 (W X D X H)
320mm X 320mm X 300mm
12.60'' X 12.60'' X 11.81''
Oven Dimension
 (W X D X H)
615mm X 515mm X 530mm
24.21'' X 20.28'' X 20.87''
Standard Shelves
4pcs
(max. 8pcs, five-sides heating, adjustable)
Volume
30L/0.9CF
Oven Weight
57KGS/126LBS
Packing & Delivery


All products will be carefully packed in plywood box with proper cushion inside the package.


We can ship to worldwide customers, via UPS, DHL, FedEx, air freight, sea freight and so on.
